Smoothing Reactor: A Critical Component in DC Power Systems
A smoothing reactor is an essential electronic device used in DC circuits after rectification. It plays a vital role in filtering and stabilizing direct current by reducing ripple currents, suppressing harmonics, and limiting fault currents. These reactors are widely employed in high-voltage direct current (HVDC) converter stations and thyristor-based electric drives with DC power supplies. In HVDC transmission systems, smoothing reactors are indispensable for ensuring system stability, efficiency, and reliability.
Technical Parameters
The key technical parameters of smoothing reactors include:
- Rated Current: The maximum continuous current the reactor can handle.
- Inductance Value: Determines the effectiveness of ripple reduction and harmonic suppression.
- Insulation Structure: Critical for ensuring safety and durability under high-voltage conditions.
- Core Design: Depending on application requirements, smoothing reactors may be designed with or without an iron core. Iron-core reactors offer higher inductance in compact sizes, while air-core reactors provide linearity and avoid saturation.
The selection of these parameters must be tailored to specific application scenarios and system requirements.
Advantages in Smoothing Reactor Technology

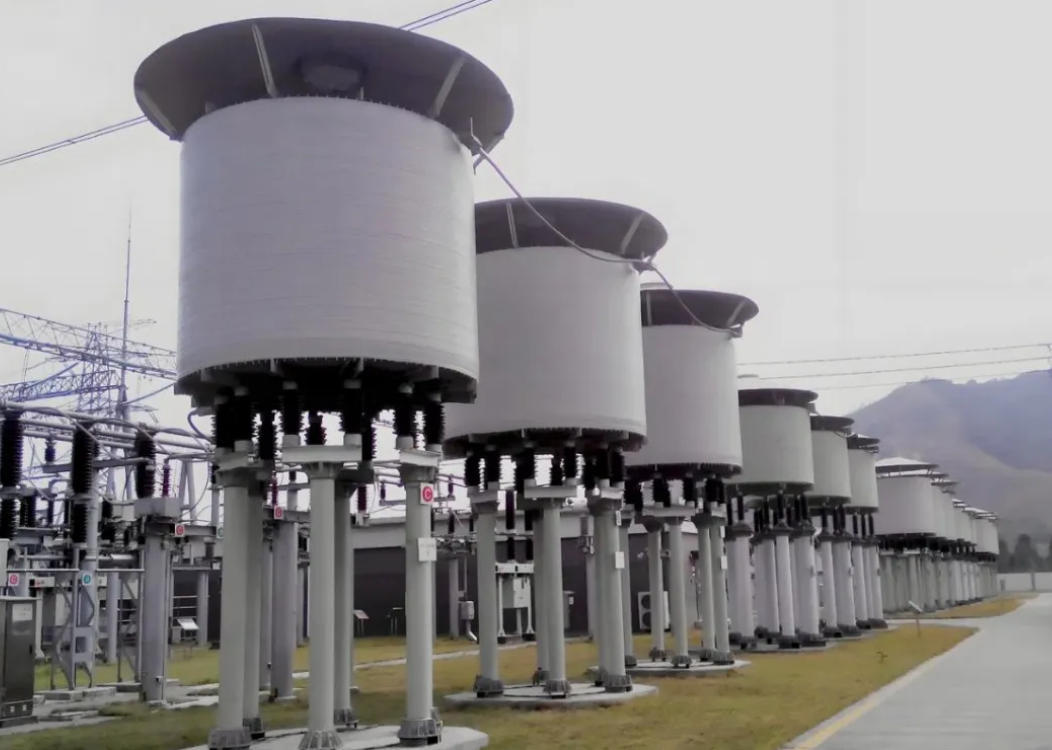

As a leading manufacturer of dry-type air-core smoothing reactors, DKNC offers unique advantages:
- Ultra-High Voltage Expertise:
Successfully developed and deployed the world’s first ±1100kV dry-type air-core smoothing reactor for the Changji-Guquan UHVDC project, demonstrating unparalleled technical capabilities.
- Customized Solutions:
Tailored designs to meet specific project requirements, such as the ±800kV smoothing reactors for the Baihetan-Jiangsu UHVDC project, ensuring optimal performance and reliability.
- Advanced Materials and Design:
Utilization of high-performance insulating materials and innovative modular designs to enhance efficiency, reduce losses, and minimize footprint.
- Rigorous Quality Control:
Every reactor undergoes comprehensive testing, including temperature rise, lightning impulse, and short-circuit tests, to ensure compliance with international standards (GB, IEC, IEEE, ANSI).
- Global Application Experience:
Over 16,000 reactors supplied worldwide, with proven performance in critical HVDC projects across China, Brazil, Pakistan, and other countries.
- Environmental and Safety Benefits:
Dry-type air-core design eliminates fire risks associated with oil-immersed reactors and requires minimal maintenance, reducing lifecycle costs.
Development Trends
With continuous advancements in power electronics technology and expanding application fields, smoothing reactors are constantly evolving. Future developments will focus on:
- Improved Energy Efficiency: Reducing losses to enhance overall system performance.
- Enhanced Reliability and Stability: Meeting the demands of more complex and diverse applications.
- Miniaturization and Lightweight Design: Optimizing size and weight without compromising performance.
- Adaptation to Renewable Energy Systems: Supporting the integration of green energy sources like wind and solar into power grids.
These innovations will ensure smoothing reactors remain at the forefront of power system technology, addressing the growing needs of modern electrical infrastructure.
