Product Details

AC Input Reactor / Output Reactor

Our products has shown reliable performance even in harsh operating conditions.The reactor was designed with low magnetic flux density, and is of high linearity and powerful overload capacity

Key words:

AC Input Reactor / Output Reactor

Category:

Reactor

E-mail:

info@bjdknc.cn

Send Inquiry

Details

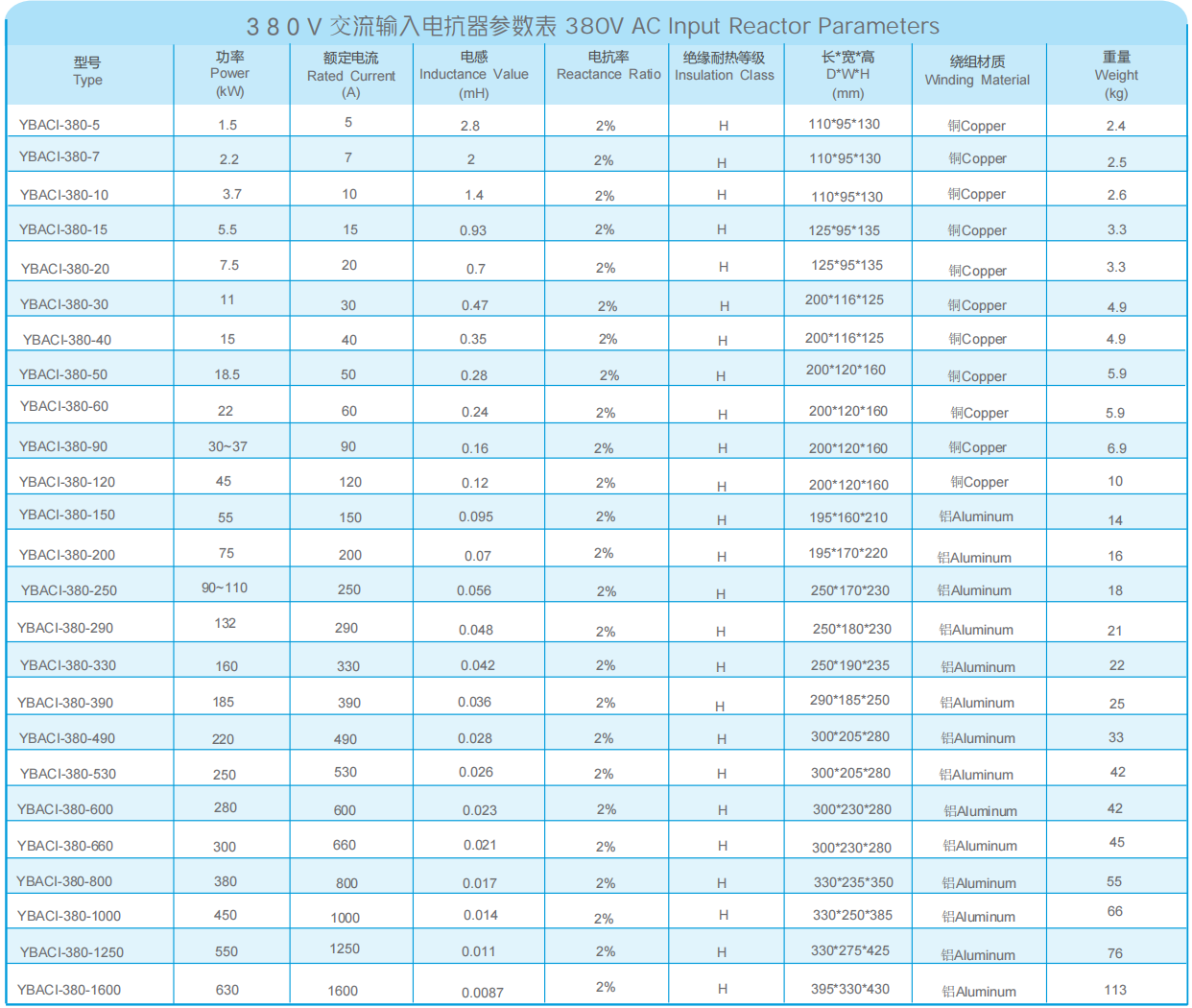

380V AC Input Reactor

Input AC Reactor: Due to the high performance foil winding structure, Input AC Reactor is characterized by small DC resistance, strong resistance to short circuit and strong short-time overload capability.Using H Class insulation composite materials, our products has shown reliable performance even in harsh operating conditions.The reactor was designed with low magnetic flux density, and is of high linearity and powerful overload capacity. Moreover, combined with VPI process, the reactor is of low noise. With the core made of superior cold rolled silicon steel sheets of low loss, the reactor boasts high efficiency, low loss and low temperature rise.

690V AC Input Reactor

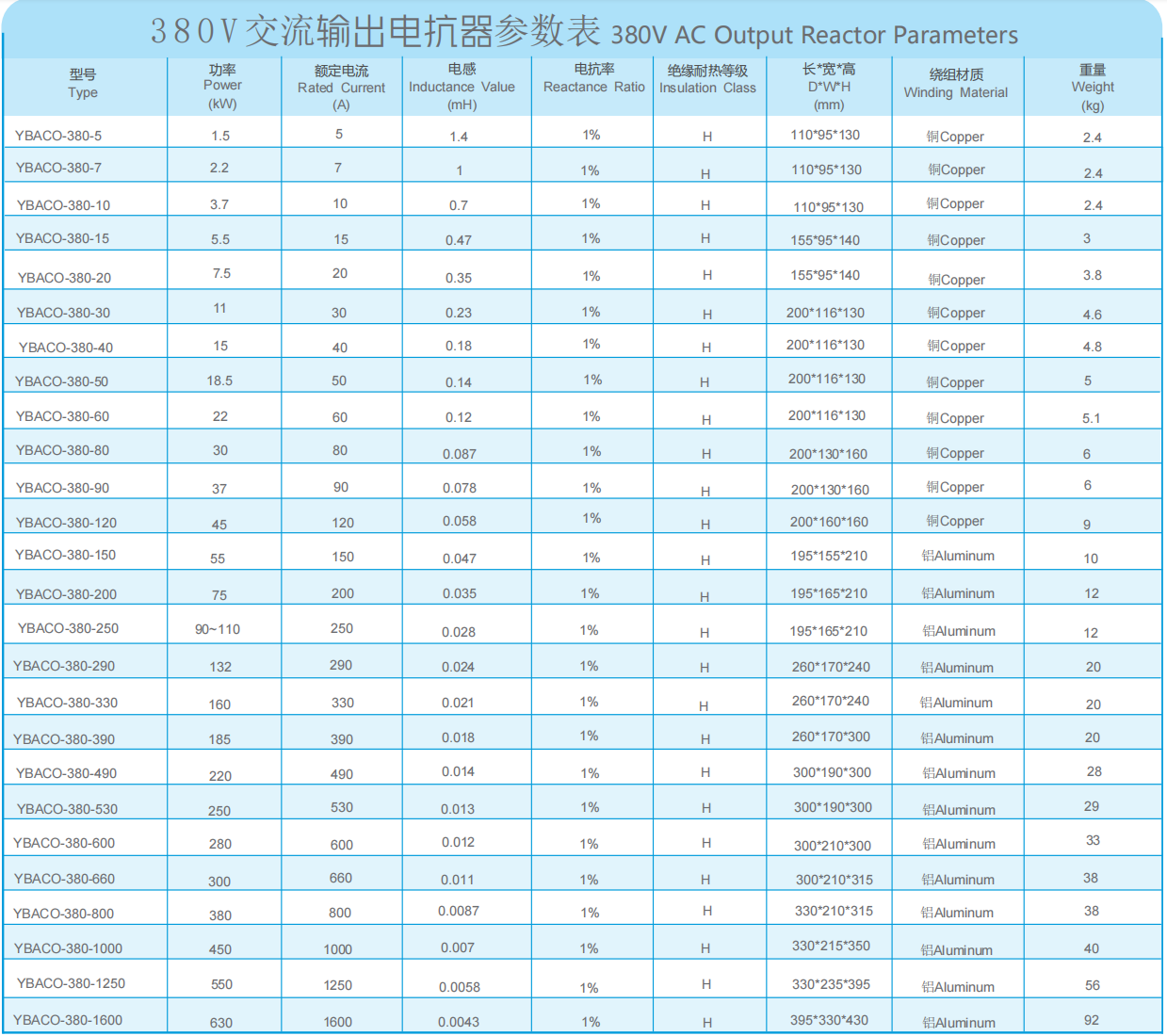

380V AC Output Reactor

Different choices of magnetic materials (Silicon steel sheets, ferrite material or amorphous core) are available to match the frequencies of different application.Due to the excellent foil winding structure, output AC Reactor is characterized by small DC resistance, strong ability to withstand short circuit and strong short-time overload capability.This reacto r is made of H Class insulation mate rials which gives reliable pe rformance even in ha rsh ope rating conditions. Designed with low magnetic flux density, the reactor is of high linearity and powerful overload capacity. Moreover, combined with VPI process, the reactor noise is low.

690V AC Output Reactor

None

Smoothing reactor
